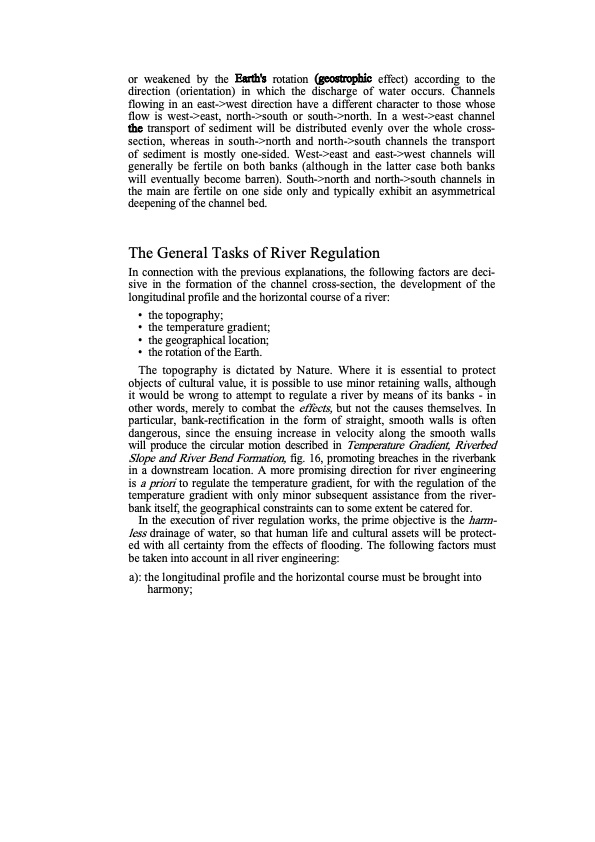

or weakened by the Earth's rotation (geostrophic effect) according to the direction (orientation) in which the discharge of water occurs. Channels flowing in an east->west direction have a different character to those whose flow is west->east, north->south or south->north. In a west->east channel the transport of sediment will be distributed evenly over the whole cross- section, whereas in south->north and north->south channels the transport of sediment is mostly one-sided. West->east and east->west channels will generally be fertile on both banks (although in the latter case both banks will eventually become barren). South->north and north->south channels in the main are fertile on one side only and typically exhibit an asymmetrical deepening of the channel bed. The General Tasks of River Regulation In connection with the previous explanations, the following factors are deci- sive in the formation of the channel cross-section, the development of the longitudinal profile and the horizontal course of a river: • the topography; • the temperature gradient; • thegeographicallocation; • therotationoftheEarth. The topography is dictated by Nature. Where it is essential to protect objects of cultural value, it is possible to use minor retaining walls, although it would be wrong to attempt to regulate a river by means of its banks - in other words, merely to combat the effects, but not the causes themselves. In particular, bank-rectification in the form of straight, smooth walls is often dangerous, since the ensuing increase in velocity along the smooth walls will produce the circular motion described in Temperature Gradient, Riverbed Slope and River Bend Formation, fig. 16, promoting breaches in the riverbank in a downstream location. A more promising direction for river engineering is a priori to regulate the temperature gradient, for with the regulation of the temperature gradient with only minor subsequent assistance from the river- bank itself, the geographical constraints can to some extent be catered for. In the execution of river regulation works, the prime objective is the harm- less drainage of water, so that human life and cultural assets will be protect- ed with all certainty from the effects of flooding. The following factors must be taken into account in all river engineering: a): the longitudinal profile and the horizontal course must be brought into harmony;PDF Image | The Water Wizard
