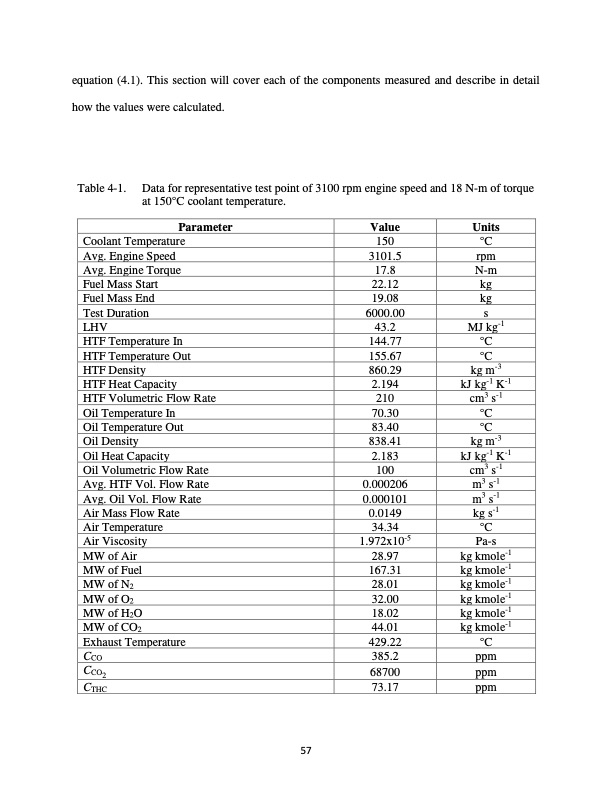

equation (4.1). This section will cover each of the components measured and describe in detail how the values were calculated. Table 4-1. Data for representative test point of 3100 rpm engine speed and 18 N-m of torque at 150°C coolant temperature. Parameter Value Units Coolant Temperature 150 °C Avg. Engine Speed 3101.5 rpm Avg. Engine Torque 17.8 N-m Fuel Mass Start 22.12 kg Fuel Mass End 19.08 kg Test Duration 6000.00 s LHV 43.2 MJ kg-1 HTF Temperature In 144.77 °C HTF Temperature Out 155.67 °C HTF Density 860.29 kg m-3 HTF Heat Capacity 2.194 kJ kg-1 K-1 HTF Volumetric Flow Rate 210 cm3 s-1 Oil Temperature In 70.30 °C Oil Temperature Out 83.40 °C Oil Density 838.41 kg m-3 Oil Heat Capacity 2.183 kJ kg-1 K-1 Oil Volumetric Flow Rate 100 cm3 s-1 Avg. HTF Vol. Flow Rate 0.000206 m3 s-1 Avg. Oil Vol. Flow Rate 0.000101 m3 s-1 Air Mass Flow Rate 0.0149 kg s-1 Air Temperature 34.34 °C Air Viscosity 1.972x10-5 Pa-s MW of Air 28.97 kg kmole-1 MW of Fuel 167.31 kg kmole-1 MW of N2 28.01 kg kmole-1 MW of O2 32.00 kg kmole-1 MW of H2O 18.02 kg kmole-1 MW of CO2 44.01 kg kmole-1 Exhaust Temperature 429.22 °C CCO 385.2 ppm CCO2 68700 ppm CTHC 73.17 ppm 57PDF Image | WASTE HEAT RECOVERY FROM A HIGH TEMPERATURE DIESEL ENGINE
