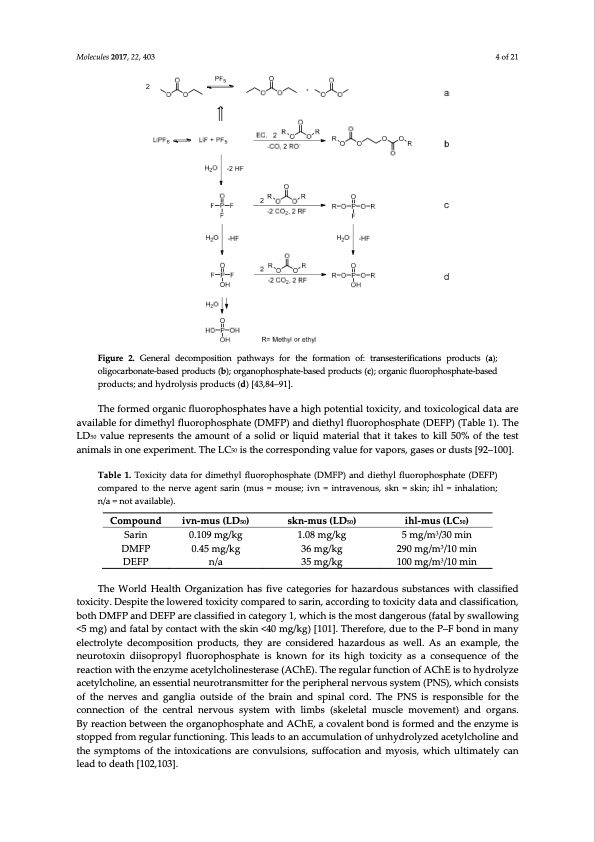

Molecules 2017, 22, 403 4 of 21 Figure 2. General decomposition pathways for the formation of: transesterifications products (a); oligocarbonate-based products (b); organophosphate-based products (c); organic fluorophosphate-based products; and hydrolysis products (d) [43,84–91]. The formed organic fluorophosphates have a high potential toxicity, and toxicological data are available for dimethyl fluorophosphate (DMFP) and diethyl fluorophosphate (DEFP) (Table 1). The LD50 value represents the amount of a solid or liquid material that it takes to kill 50% of the test animals in one experiment. The LC50 is the corresponding value for vapors, gases or dusts [92–100]. Table 1. Toxicity data for dimethyl fluorophosphate (DMFP) and diethyl fluorophosphate (DEFP) compared to the nerve agent sarin (mus = mouse; ivn = intravenous, skn = skin; ihl = inhalation; n/a = not available). Compound Sarin DMFP DEFP ivn-mus (LD50) 0.109 mg/kg 0.45 mg/kg n/a skn-mus (LD50) 1.08 mg/kg 36 mg/kg 35 mg/kg ihl-mus (LC50) 5 mg/m3/30 min 290 mg/m3/10 min 100 mg/m3/10 min The World Health Organization has five categories for hazardous substances with classified toxicity. Despite the lowered toxicity compared to sarin, according to toxicity data and classification, both DMFP and DEFP are classified in category 1, which is the most dangerous (fatal by swallowing <5 mg) and fatal by contact with the skin <40 mg/kg) [101]. Therefore, due to the P–F bond in many electrolyte decomposition products, they are considered hazardous as well. As an example, the neurotoxin diisopropyl fluorophosphate is known for its high toxicity as a consequence of the reaction with the enzyme acetylcholinesterase (AChE). The regular function of AChE is to hydrolyze acetylcholine, an essential neurotransmitter for the peripheral nervous system (PNS), which consists of the nerves and ganglia outside of the brain and spinal cord. The PNS is responsible for the connection of the central nervous system with limbs (skeletal muscle movement) and organs. By reaction between the organophosphate and AChE, a covalent bond is formed and the enzyme is stopped from regular functioning. This leads to an accumulation of unhydrolyzed acetylcholine and the symptoms of the intoxications are convulsions, suffocation and myosis, which ultimately can lead to death [102,103].PDF Image | CO2 for Recycling and Sample Preparation of Lithium Ion Battery
