Text from PDF Page: 077

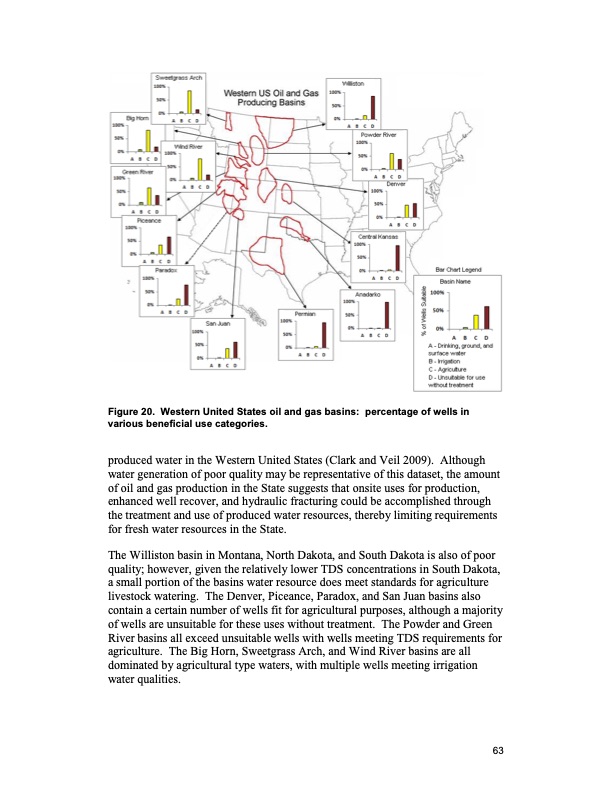

Figure 20. Western United States oil and gas basins: percentage of wells in various beneficial use categories. produced water in the Western United States (Clark and Veil 2009). Although water generation of poor quality may be representative of this dataset, the amount of oil and gas production in the State suggests that onsite uses for production, enhanced well recover, and hydraulic fracturing could be accomplished through the treatment and use of produced water resources, thereby limiting requirements for fresh water resources in the State. The Williston basin in Montana, North Dakota, and South Dakota is also of poor quality; however, given the relatively lower TDS concentrations in South Dakota, a small portion of the basins water resource does meet standards for agriculture livestock watering. The Denver, Piceance, Paradox, and San Juan basins also contain a certain number of wells fit for agricultural purposes, although a majority of wells are unsuitable for these uses without treatment. The Powder and Green River basins all exceed unsuitable wells with wells meeting TDS requirements for agriculture. The Big Horn, Sweetgrass Arch, and Wind River basins are all dominated by agricultural type waters, with multiple wells meeting irrigation water qualities. 63PDF Image | Oil and Gas Produced Water Management
