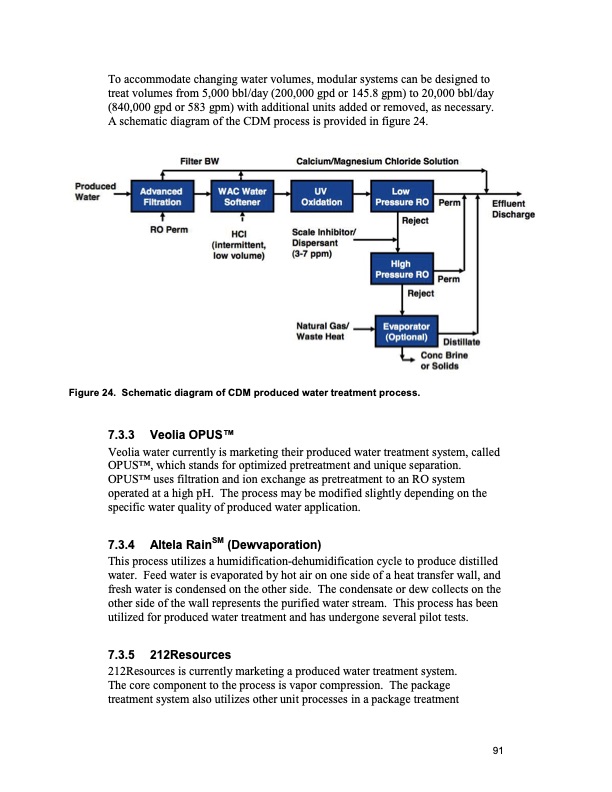

To accommodate changing water volumes, modular systems can be designed to treat volumes from 5,000 bbl/day (200,000 gpd or 145.8 gpm) to 20,000 bbl/day (840,000 gpd or 583 gpm) with additional units added or removed, as necessary. A schematic diagram of the CDM process is provided in figure 24. Figure 24. Schematic diagram of CDM produced water treatment process. 7.3.3 Veolia OPUSTM Veolia water currently is marketing their produced water treatment system, called OPUSTM, which stands for optimized pretreatment and unique separation. OPUSTM uses filtration and ion exchange as pretreatment to an RO system operated at a high pH. The process may be modified slightly depending on the specific water quality of produced water application. 7.3.4 Altela RainSM (Dewvaporation) This process utilizes a humidification-dehumidification cycle to produce distilled water. Feed water is evaporated by hot air on one side of a heat transfer wall, and fresh water is condensed on the other side. The condensate or dew collects on the other side of the wall represents the purified water stream. This process has been utilized for produced water treatment and has undergone several pilot tests. 7.3.5 212Resources 212Resources is currently marketing a produced water treatment system. The core component to the process is vapor compression. The package treatment system also utilizes other unit processes in a package treatment 91PDF Image | Oil and Gas Produced Water Management
