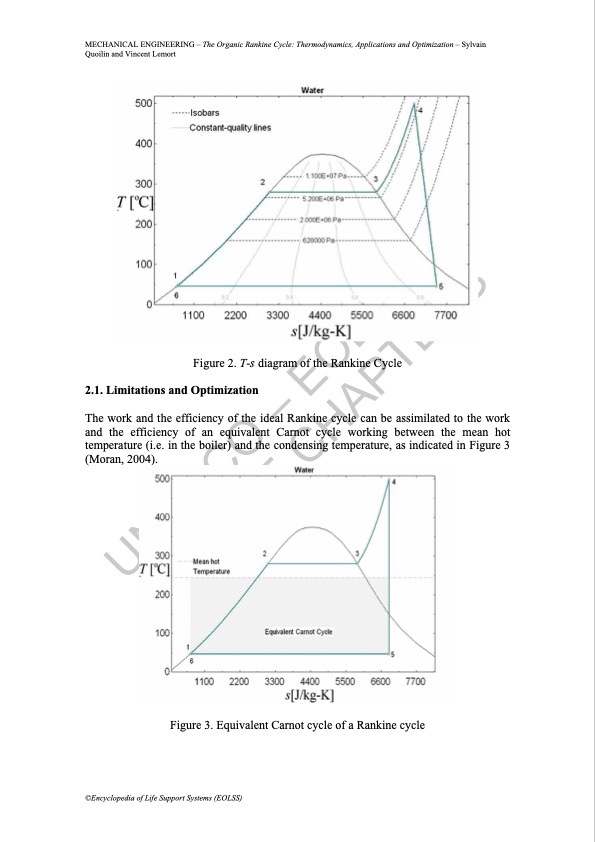

MECHANICAL ENGINEERING – The Organic Rankine Cycle: Thermodynamics, Applications and Optimization – Sylvain Quoilin and Vincent Lemort Figure 2. T-s diagram of the Rankine Cycle 2.1. Limitations and Optimization The work and the efficiency of the ideal Rankine cycle can be assimilated to the work and the efficiency of an equivalent Carnot cycle working between the mean hot temperature (i.e. in the boiler) and the condensing temperature, as indicated in Figure 3 (Moran, 2004). Figure 3. Equivalent Carnot cycle of a Rankine cycle ©Encyclopedia of Life Support Systems (EOLSS) UNESCO – EOLSS SAMPLE CHAPTERSPDF Image | ORC THERMODYNAMICS, APPLICATIONS AND OPTIMIZATION
