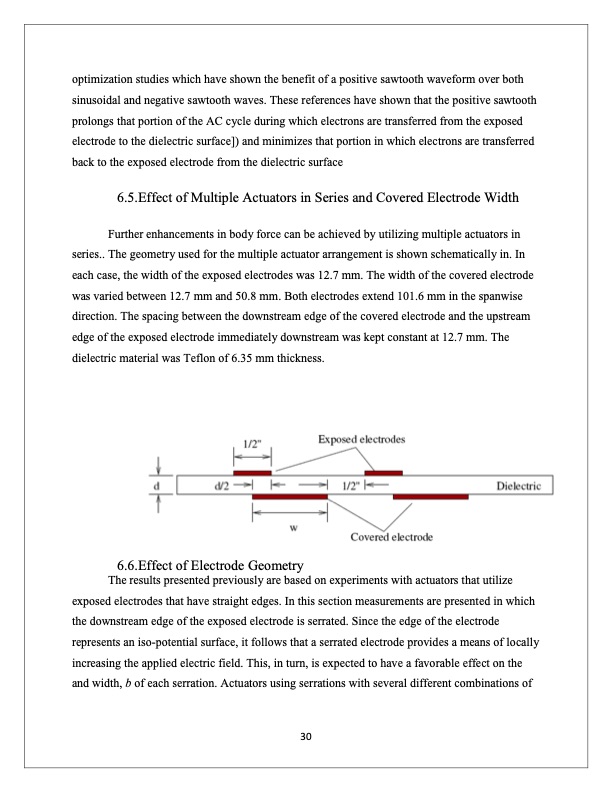

optimization studies which have shown the benefit of a positive sawtooth waveform over both sinusoidal and negative sawtooth waves. These references have shown that the positive sawtooth prolongs that portion of the AC cycle during which electrons are transferred from the exposed electrode to the dielectric surface]) and minimizes that portion in which electrons are transferred back to the exposed electrode from the dielectric surface 6.5.Effect of Multiple Actuators in Series and Covered Electrode Width Further enhancements in body force can be achieved by utilizing multiple actuators in series.. The geometry used for the multiple actuator arrangement is shown schematically in. In each case, the width of the exposed electrodes was 12.7 mm. The width of the covered electrode was varied between 12.7 mm and 50.8 mm. Both electrodes extend 101.6 mm in the spanwise direction. The spacing between the downstream edge of the covered electrode and the upstream edge of the exposed electrode immediately downstream was kept constant at 12.7 mm. The dielectric material was Teflon of 6.35 mm thickness. 6.6.Effect of Electrode Geometry The results presented previously are based on experiments with actuators that utilize exposed electrodes that have straight edges. In this section measurements are presented in which the downstream edge of the exposed electrode is serrated. Since the edge of the electrode represents an iso-potential surface, it follows that a serrated electrode provides a means of locally increasing the applied electric field. This, in turn, is expected to have a favorable effect on the and width, b of each serration. Actuators using serrations with several different combinations of 30PDF Image | PLASMA FUNCTIONALIZATION OF MULTI-SCALE STRUCTURES
