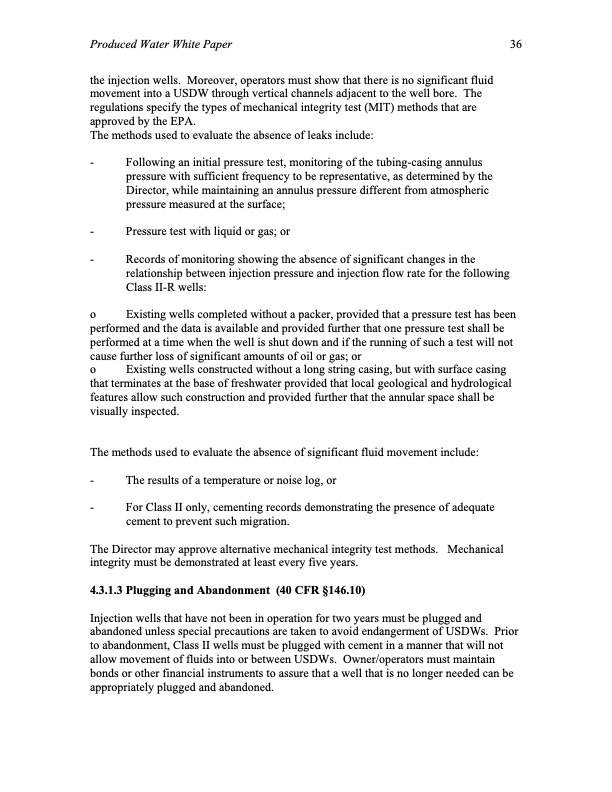

Produced Water White Paper 36 the injection wells. Moreover, operators must show that there is no significant fluid movement into a USDW through vertical channels adjacent to the well bore. The regulations specify the types of mechanical integrity test (MIT) methods that are approved by the EPA. The methods used to evaluate the absence of leaks include: - Following an initial pressure test, monitoring of the tubing-casing annulus pressure with sufficient frequency to be representative, as determined by the Director, while maintaining an annulus pressure different from atmospheric pressure measured at the surface; - Pressure test with liquid or gas; or - Records of monitoring showing the absence of significant changes in the relationship between injection pressure and injection flow rate for the following Class II-R wells: o Existing wells completed without a packer, provided that a pressure test has been performed and the data is available and provided further that one pressure test shall be performed at a time when the well is shut down and if the running of such a test will not cause further loss of significant amounts of oil or gas; or o Existing wells constructed without a long string casing, but with surface casing that terminates at the base of freshwater provided that local geological and hydrological features allow such construction and provided further that the annular space shall be visually inspected. The methods used to evaluate the absence of significant fluid movement include: - The results of a temperature or noise log, or - For Class II only, cementing records demonstrating the presence of adequate cement to prevent such migration. The Director may approve alternative mechanical integrity test methods. Mechanical integrity must be demonstrated at least every five years. 4.3.1.3 Plugging and Abandonment (40 CFR ยง146.10) Injection wells that have not been in operation for two years must be plugged and abandoned unless special precautions are taken to avoid endangerment of USDWs. Prior to abandonment, Class II wells must be plugged with cement in a manner that will not allow movement of fluids into or between USDWs. Owner/operators must maintain bonds or other financial instruments to assure that a well that is no longer needed can be appropriately plugged and abandoned.PDF Image | Produced Water from Production of Crude Oil
