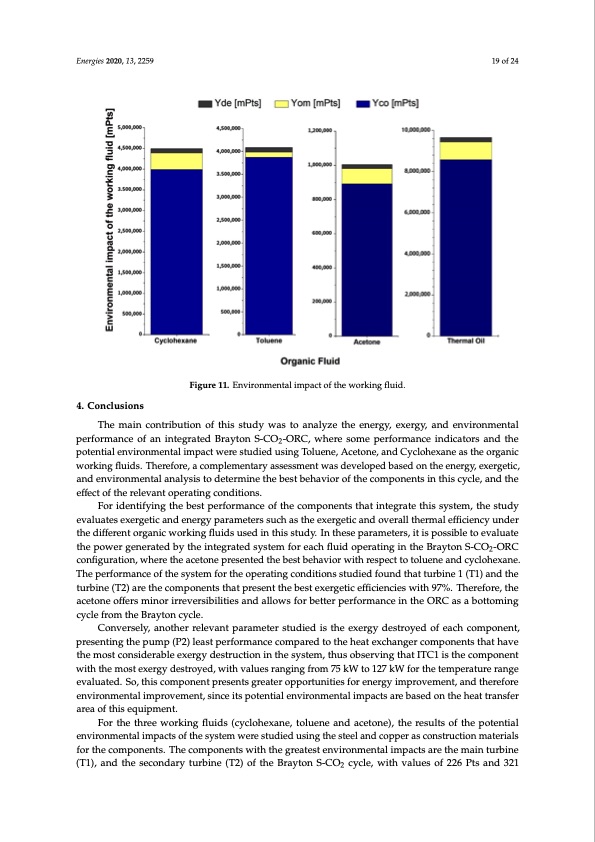

Energies 2020, 13, 2259 19 of 24 4. Conclusions Figure 11. Environmental impact of the working fluid. The main contribution of this study was to analyze the energy, exergy, and environmental performance of an integrated Brayton S-CO2-ORC, where some performance indicators and the potential environmental impact were studied using Toluene, Acetone, and Cyclohexane as the organic working fluids. Therefore, a complementary assessment was developed based on the energy, exergetic, and environmental analysis to determine the best behavior of the components in this cycle, and the effect of the relevant operating conditions. For identifying the best performance of the components that integrate this system, the study evaluates exergetic and energy parameters such as the exergetic and overall thermal efficiency under the different organic working fluids used in this study. In these parameters, it is possible to evaluate the power generated by the integrated system for each fluid operating in the Brayton S-CO2-ORC configuration, where the acetone presented the best behavior with respect to toluene and cyclohexane. The performance of the system for the operating conditions studied found that turbine 1 (T1) and the turbine (T2) are the components that present the best exergetic efficiencies with 97%. Therefore, the acetone offers minor irreversibilities and allows for better performance in the ORC as a bottoming cycle from the Brayton cycle. Conversely, another relevant parameter studied is the exergy destroyed of each component, presenting the pump (P2) least performance compared to the heat exchanger components that have the most considerable exergy destruction in the system, thus observing that ITC1 is the component with the most exergy destroyed, with values ranging from 75 kW to 127 kW for the temperature range evaluated. So, this component presents greater opportunities for energy improvement, and therefore environmental improvement, since its potential environmental impacts are based on the heat transfer area of this equipment. For the three working fluids (cyclohexane, toluene and acetone), the results of the potential environmental impacts of the system were studied using the steel and copper as construction materials for the components. The components with the greatest environmental impacts are the main turbine (T1), and the secondary turbine (T2) of the Brayton S-CO2 cycle, with values of 226 Pts and 321PDF Image | S-CO2 Brayton Cycle Coupled with ORC as Bottoming Cycle
