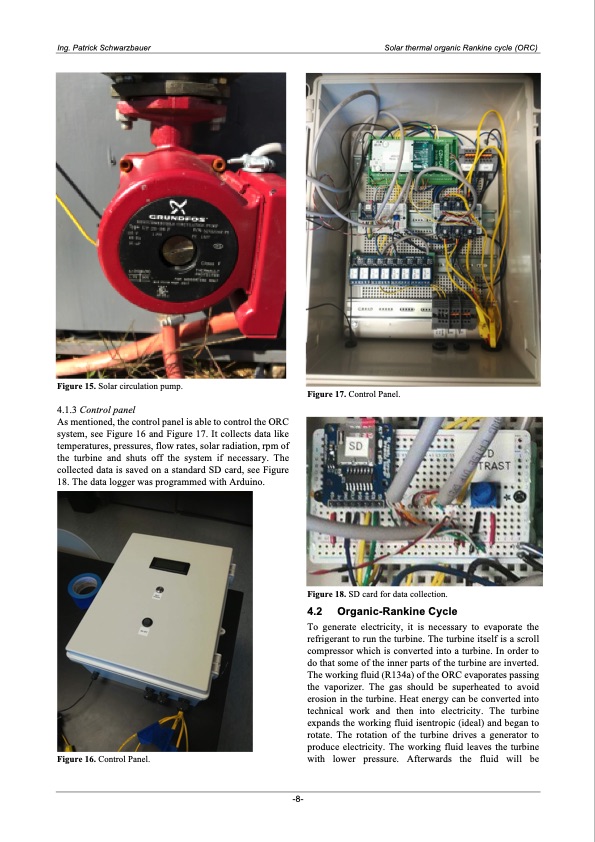

Ing. Patrick Schwarzbauer Solar thermal organic Rankine cycle (ORC) Figure 15. Solar circulation pump. 4.1.3 Control panel As mentioned, the control panel is able to control the ORC system, see Figure 16 and Figure 17. It collects data like temperatures, pressures, flow rates, solar radiation, rpm of the turbine and shuts off the system if necessary. The collected data is saved on a standard SD card, see Figure 18. The data logger was programmed with Arduino. Figure 16. Control Panel. Figure 17. Control Panel. Figure 18. SD card for data collection. 4.2 Organic-Rankine Cycle To generate electricity, it is necessary to evaporate the refrigerant to run the turbine. The turbine itself is a scroll compressor which is converted into a turbine. In order to do that some of the inner parts of the turbine are inverted. The working fluid (R134a) of the ORC evaporates passing the vaporizer. The gas should be superheated to avoid erosion in the turbine. Heat energy can be converted into technical work and then into electricity. The turbine expands the working fluid isentropic (ideal) and began to rotate. The rotation of the turbine drives a generator to produce electricity. The working fluid leaves the turbine with lower pressure. Afterwards the fluid will be -8-PDF Image | Solar thermal organic Rankine cycle (ORC)
