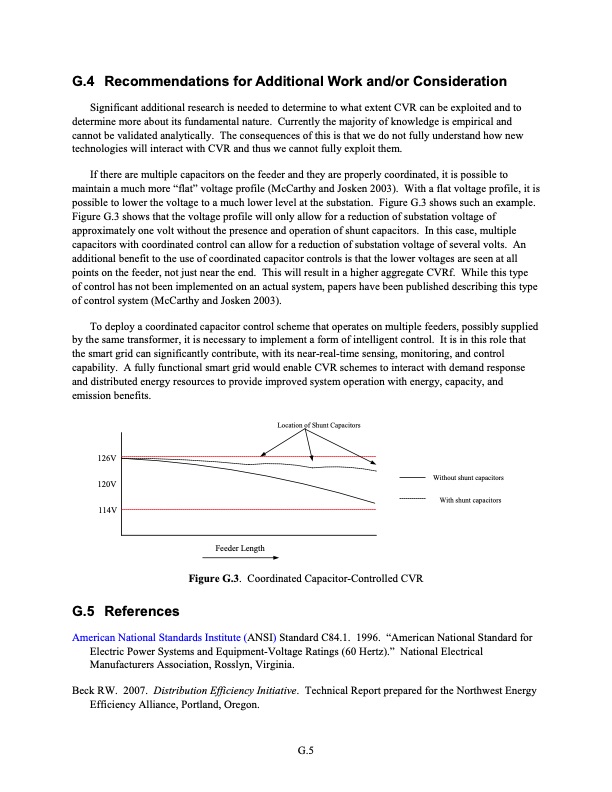

G.4 Recommendations for Additional Work and/or Consideration Significant additional research is needed to determine to what extent CVR can be exploited and to determine more about its fundamental nature. Currently the majority of knowledge is empirical and cannot be validated analytically. The consequences of this is that we do not fully understand how new technologies will interact with CVR and thus we cannot fully exploit them. If there are multiple capacitors on the feeder and they are properly coordinated, it is possible to maintain a much more “flat” voltage profile (McCarthy and Josken 2003). With a flat voltage profile, it is possible to lower the voltage to a much lower level at the substation. Figure G.3 shows such an example. Figure G.3 shows that the voltage profile will only allow for a reduction of substation voltage of approximately one volt without the presence and operation of shunt capacitors. In this case, multiple capacitors with coordinated control can allow for a reduction of substation voltage of several volts. An additional benefit to the use of coordinated capacitor controls is that the lower voltages are seen at all points on the feeder, not just near the end. This will result in a higher aggregate CVRf. While this type of control has not been implemented on an actual system, papers have been published describing this type of control system (McCarthy and Josken 2003). To deploy a coordinated capacitor control scheme that operates on multiple feeders, possibly supplied by the same transformer, it is necessary to implement a form of intelligent control. It is in this role that the smart grid can significantly contribute, with its near-real-time sensing, monitoring, and control capability. A fully functional smart grid would enable CVR schemes to interact with demand response and distributed energy resources to provide improved system operation with energy, capacity, and emission benefits. 126V 120V 114V G.5 References Location of Shunt Capacitors Feeder Length Figure G.3. Coordinated Capacitor-Controlled CVR Without shunt capacitors With shunt capacitors American National Standards Institute (ANSI) Standard C84.1. 1996. “American National Standard for Electric Power Systems and Equipment-Voltage Ratings (60 Hertz).” National Electrical Manufacturers Association, Rosslyn, Virginia. Beck RW. 2007. Distribution Efficiency Initiative. Technical Report prepared for the Northwest Energy Efficiency Alliance, Portland, Oregon. G.5PDF Image | The Smart Grid: An Estimation of the Energy and CO2 Benefits
