PDF Publication Title:
Text from PDF Page: 164

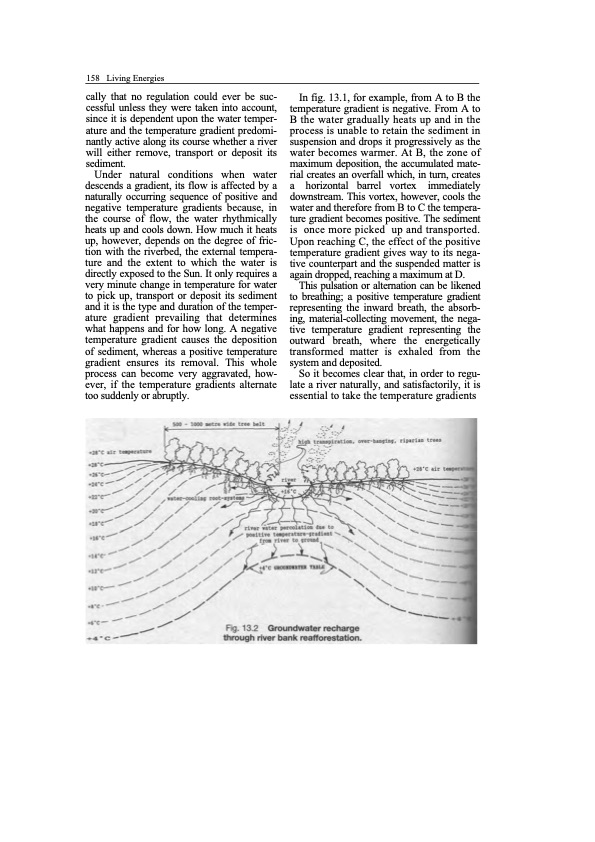

158 Living Energies cally that no regulation could ever be suc- cessful unless they were taken into account, since it is dependent upon the water temper- ature and the temperature gradient predomi- nantly active along its course whether a river will either remove, transport or deposit its sediment. Under natural conditions when water descends a gradient, its flow is affected by a naturally occurring sequence of positive and negative temperature gradients because, in the course of flow, the water rhythmically heats up and cools down. How much it heats up, however, depends on the degree of fric- tion with the riverbed, the external tempera- ture and the extent to which the water is directly exposed to the Sun. It only requires a very minute change in temperature for water to pick up, transport or deposit its sediment and it is the type and duration of the temper- ature gradient prevailing that determines what happens and for how long. A negative temperature gradient causes the deposition of sediment, whereas a positive temperature gradient ensures its removal. This whole process can become very aggravated, how- ever, if the temperature gradients alternate too suddenly or abruptly. In fig. 13.1, for example, from A to B the temperature gradient is negative. From A to B the water gradually heats up and in the process is unable to retain the sediment in suspension and drops it progressively as the water becomes warmer. At B, the zone of maximum deposition, the accumulated mate- rial creates an overfall which, in turn, creates a horizontal barrel vortex immediately downstream. This vortex, however, cools the water and therefore from B to C the tempera- ture gradient becomes positive. The sediment is once more picked up and transported. Upon reaching C, the effect of the positive temperature gradient gives way to its nega- tive counterpart and the suspended matter is again dropped, reaching a maximum at D. This pulsation or alternation can be likened to breathing; a positive temperature gradient representing the inward breath, the absorb- ing, material-collecting movement, the nega- tive temperature gradient representing the outward breath, where the energetically transformed matter is exhaled from the system and deposited. So it becomes clear that, in order to regu- late a river naturally, and satisfactorily, it is essential to take the temperature gradientsPDF Image | Viktor Schauberger Work Explained
