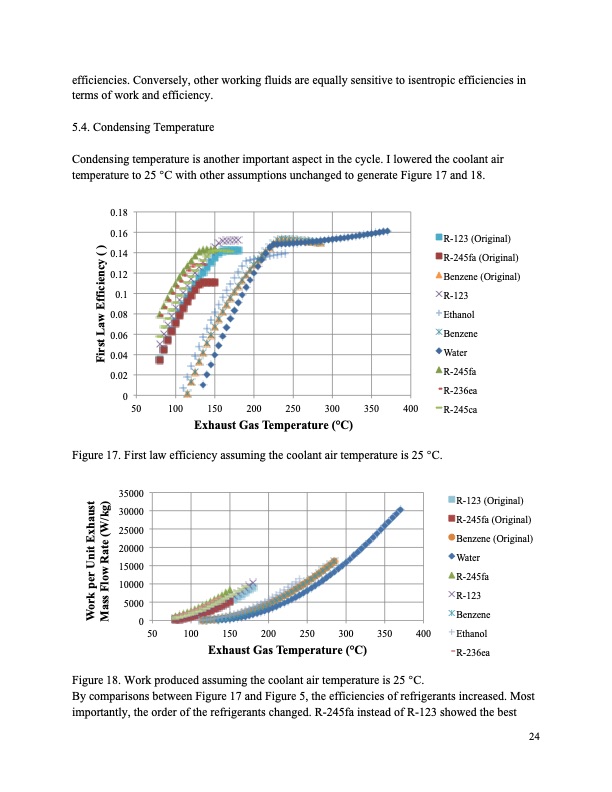

efficiencies. Conversely, other working fluids are equally sensitive to isentropic efficiencies in terms of work and efficiency. 5.4. Condensing Temperature Condensing temperature is another important aspect in the cycle. I lowered the coolant air temperature to 25 °C with other assumptions unchanged to generate Figure 17 and 18. Figure 17. First law efficiency assuming the coolant air temperature is 25 °C. Figure 18. Work produced assuming the coolant air temperature is 25 °C. By comparisons between Figure 17 and Figure 5, the efficiencies of refrigerants increased. Most importantly, the order of the refrigerants changed. R-245fa instead of R-123 showed the best 0.18 0.16 0.14 0.12 0.1 0.08 0.06 0.04 0.02 0 R-123 (Original) R-245fa (Original) Benzene (Original) R-123 Ethanol Benzene Water R-245fa R-236ea R-245ca 50 100 150 200 250 300 350 400 Exhaust Gas Temperature (°C) 35000 30000 25000 20000 15000 10000 5000 0 R-123 (Original) R-245fa (Original) Benzene (Original) Water R-245fa R-123 Benzene Ethanol R-236ea 50 100 150 200 250 300 350 400 Exhaust Gas Temperature (°C) 24 Work per Unit Exhaust Mass Flow Rate (W/kg) First Law Efficiency ( )PDF Image | Working Fluid Selections in Organic Rankine Cycle ICE
