Text from PDF Page: 013

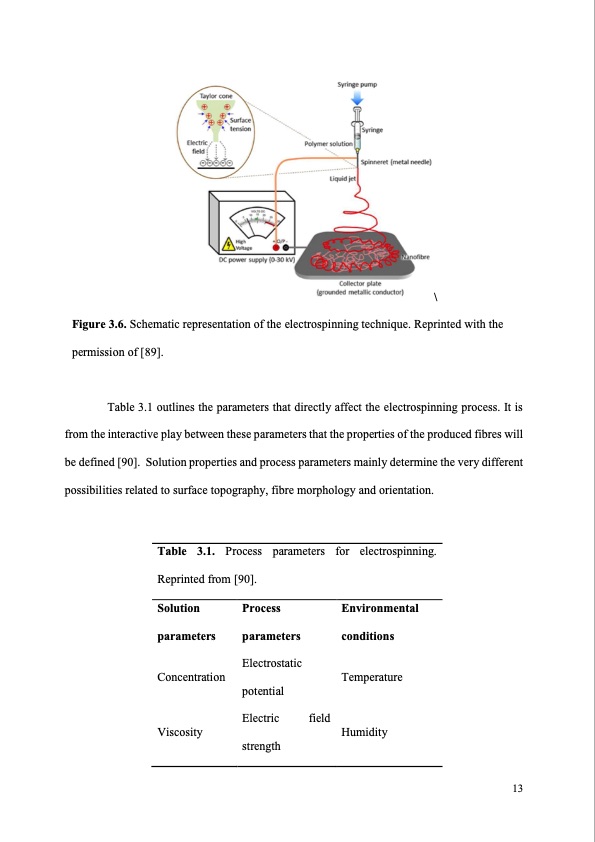

\ Figure 3.6. Schematic representation of the electrospinning technique. Reprinted with the permission of [89]. Table 3.1 outlines the parameters that directly affect the electrospinning process. It is from the interactive play between these parameters that the properties of the produced fibres will be defined [90]. Solution properties and process parameters mainly determine the very different possibilities related to surface topography, fibre morphology and orientation. Table 3.1. Process parameters for electrospinning. Reprinted from [90]. Solution parameters Concentration Viscosity Process parameters Electrostatic potential Electric strength field Environmental conditions Temperature Humidity 13
