Text from PDF Page: 018

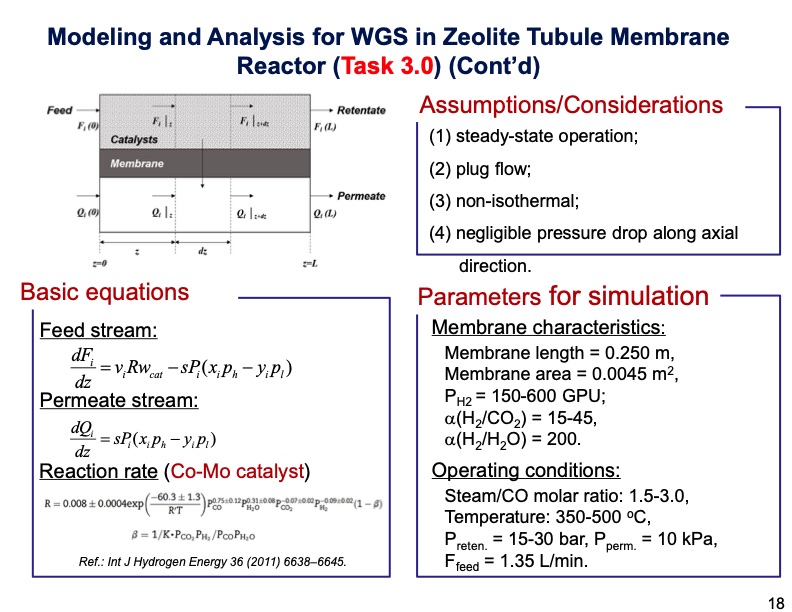

Modeling and Analysis for WGS in Zeolite Tubule Membrane Reactor (Task 3.0) (Cont’d) Basic equations Feed stream: dF vRw sP(xp yp) dz i cat i i h i l Permeate stream: dQ sP(xp yp) dz i i h i l Reaction rate (Co-Mo catalyst) Ref.: Int J Hydrogen Energy 36 (2011) 6638–6645. Assumptions/Considerations (1) steady-state operation; (2) plug flow; (3) non-isothermal; (4) negligible pressure drop along axial direction. Parameters for simulation Membrane characteristics: Membranelength=0.250m, Membrane area = 0.0045 m2, PH2 = 150-600 GPU; a(H2/CO2) = 15-45, a(H2/H2O) = 200. Operating conditions: Steam/CO molar ratio: 1.5-3.0, Temperature: 350-500 oC, Preten. = 15-30 bar, Pperm. = 10 kPa, Ffeed = 1.35 L/min. i i 18
