Text from PDF Page: 157

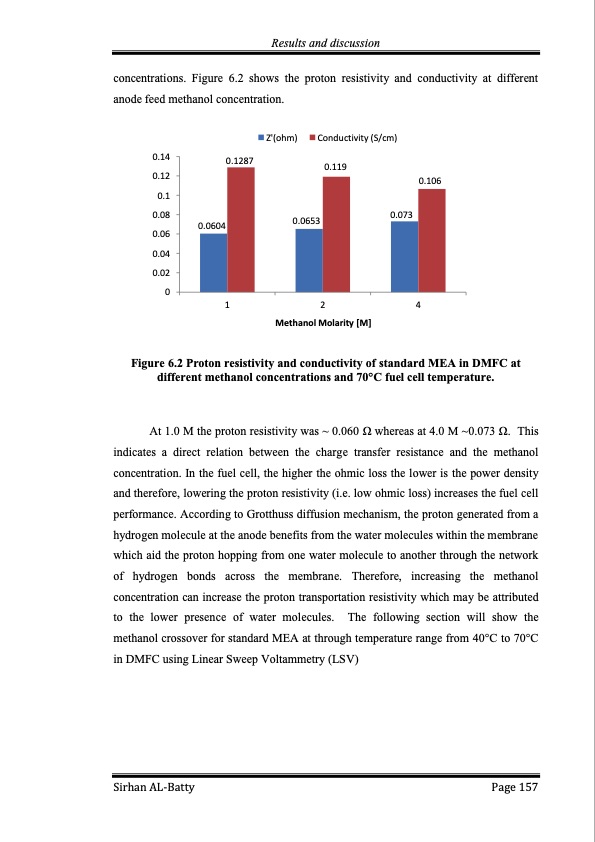

Results and discussion concentrations. Figure 6.2 shows the proton resistivity and conductivity at different anode feed methanol concentration. 0.14 0.12 0.1 0.08 0.06 0.04 0.02 0 0.1287 0.0604 Z'(ohm) Conductivity (S/cm) 0.119 0.0653 0.073 124 Methanol Molarity [M] 0.106 Figure 6.2 Proton resistivity and conductivity of standard MEA in DMFC at different methanol concentrations and 70°C fuel cell temperature. At 1.0 M the proton resistivity was ~ 0.060 Ω whereas at 4.0 M ~0.073 Ω. This indicates a direct relation between the charge transfer resistance and the methanol concentration. In the fuel cell, the higher the ohmic loss the lower is the power density and therefore, lowering the proton resistivity (i.e. low ohmic loss) increases the fuel cell performance. According to Grotthuss diffusion mechanism, the proton generated from a hydrogen molecule at the anode benefits from the water molecules within the membrane which aid the proton hopping from one water molecule to another through the network of hydrogen bonds across the membrane. Therefore, increasing the methanol concentration can increase the proton transportation resistivity which may be attributed to the lower presence of water molecules. The following section will show the methanol crossover for standard MEA at through temperature range from 40°C to 70°C in DMFC using Linear Sweep Voltammetry (LSV) Sirhan AL-Batty Page 157PDF Image | Membrane Electrode Assembly Modification by Zeolite and Graphene Oxide
