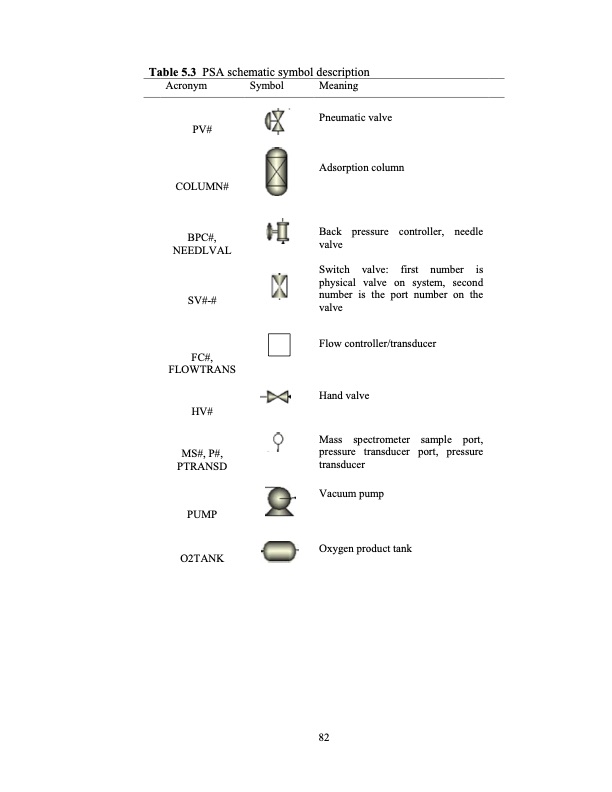

Table 5.3 PSA schematic symbol description Acronym PV# COLUMN# BPC#, NEEDLVAL SV#-# FC#, FLOWTRANS HV# MS#, P#, PTRANSD PUMP O2TANK Symbol Meaning Pneumatic valve Adsorption column Back pressure controller, needle valve Switch valve: first number is physical valve on system, second number is the port number on the valve Flow controller/transducer Hand valve Mass spectrometer sample port, pressure transducer port, pressure transducer Vacuum pump Oxygen product tank 82PDF Image | LIMITS OF SMALL SCALE PRESSURE SWING ADSORPTION
