PDF Publication Title:
Text from PDF Page: 007

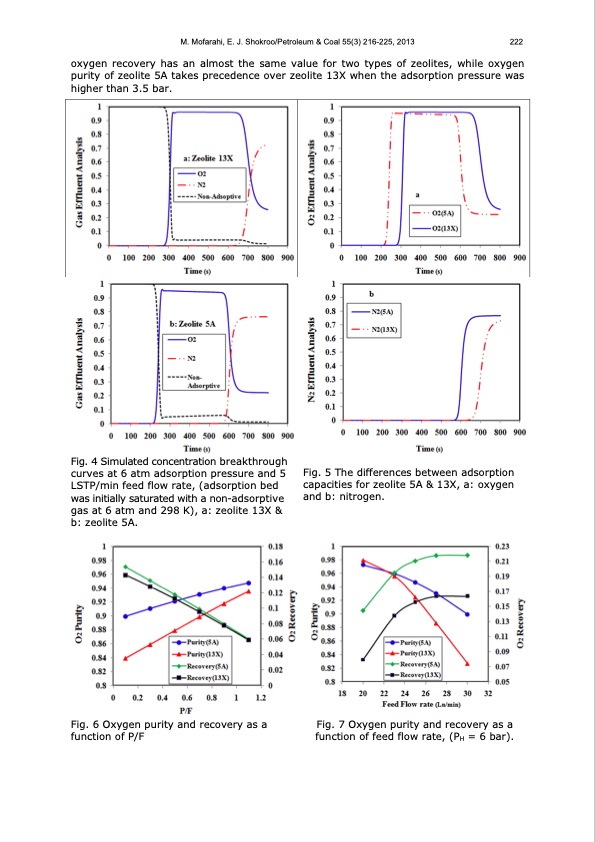

M. Mofarahi, E. J. Shokroo/Petroleum & Coal 55(3) 216-225, 2013 222 oxygen recovery has an almost the same value for two types of zeolites, while oxygen purity of zeolite 5A takes precedence over zeolite 13X when the adsorption pressure was higher than 3.5 bar. Fig. 4 Simulated concentration breakthrough curves at 6 atm adsorption pressure and 5 LSTP/min feed flow rate, (adsorption bed was initially saturated with a non-adsorptive gas at 6 atm and 298 K), a: zeolite 13X & b: zeolite 5A. Fig. 5 The differences between adsorption capacities for zeolite 5A & 13X, a: oxygen and b: nitrogen. Fig. 6 Oxygen purity and recovery as a function of P/F Fig. 7 Oxygen purity and recovery as a function of feed flow rate, (PH = 6 bar).PDF Image | PRESSURE SWING ADSORPTION PROCESSES FOR AIR SEPARATION WITH ZEOLITE
PDF Search Title:
PRESSURE SWING ADSORPTION PROCESSES FOR AIR SEPARATION WITH ZEOLITEOriginal File Name Searched:
pc_3_2013_javadi_221.pdfDIY PDF Search: Google It | Yahoo | Bing
