Text from PDF Page: 009

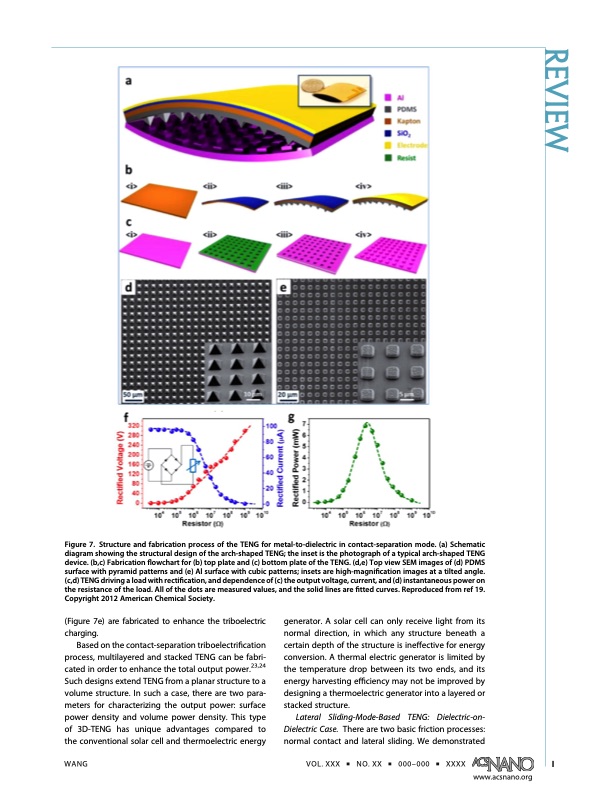

Figure 7. Structure and fabrication process of the TENG for metal-to-dielectric in contact-separation mode. (a) Schematic diagram showing the structural design of the arch-shaped TENG; the inset is the photograph of a typical arch-shaped TENG device. (b,c) Fabrication flowchart for (b) top plate and (c) bottom plate of the TENG. (d,e) Top view SEM images of (d) PDMS surface with pyramid patterns and (e) Al surface with cubic patterns; insets are high-magnification images at a tilted angle. (c,d) TENG driving a load with rectification, and dependence of (c) the output voltage, current, and (d) instantaneous power on the resistance of the load. All of the dots are measured values, and the solid lines are fitted curves. Reproduced from ref 19. Copyright 2012 American Chemical Society. (Figure 7e) are fabricated to enhance the triboelectric charging. Based on the contact-separation triboelectrification process, multilayered and stacked TENG can be fabri- cated in order to enhance the total output power.23,24 Such designs extend TENG from a planar structure to a volume structure. In such a case, there are two para- meters for characterizing the output power: surface power density and volume power density. This type of 3D-TENG has unique advantages compared to the conventional solar cell and thermoelectric energy generator. A solar cell can only receive light from its normal direction, in which any structure beneath a certain depth of the structure is ineffective for energy conversion. A thermal electric generator is limited by the temperature drop between its two ends, and its energy harvesting efficiency may not be improved by designing a thermoelectric generator into a layered or stacked structure. Lateral Sliding-Mode-Based TENG: Dielectric-on- Dielectric Case. There are two basic friction processes: normal contact and lateral sliding. We demonstrated WANG VOL. XXX ’ NO. XX ’ 000–000 ’ XXXX I www.acsnano.org REVIEWPDF Image | Triboelectric Nanogenerators as New Energy Technology
