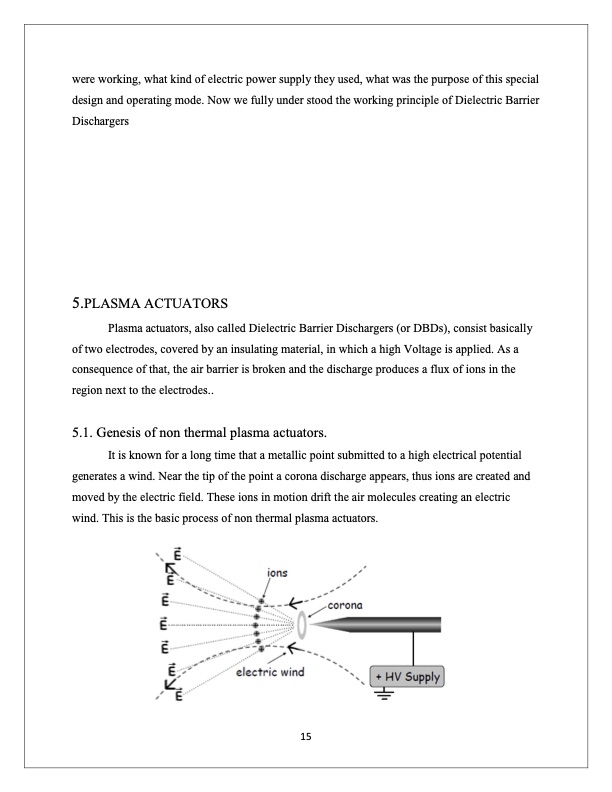

were working, what kind of electric power supply they used, what was the purpose of this special design and operating mode. Now we fully under stood the working principle of Dielectric Barrier Dischargers 5.PLASMA ACTUATORS Plasma actuators, also called Dielectric Barrier Dischargers (or DBDs), consist basically of two electrodes, covered by an insulating material, in which a high Voltage is applied. As a consequence of that, the air barrier is broken and the discharge produces a flux of ions in the region next to the electrodes.. 5.1. Genesis of non thermal plasma actuators. It is known for a long time that a metallic point submitted to a high electrical potential generates a wind. Near the tip of the point a corona discharge appears, thus ions are created and moved by the electric field. These ions in motion drift the air molecules creating an electric wind. This is the basic process of non thermal plasma actuators. 15PDF Image | PLASMA FUNCTIONALIZATION OF MULTI-SCALE STRUCTURES
