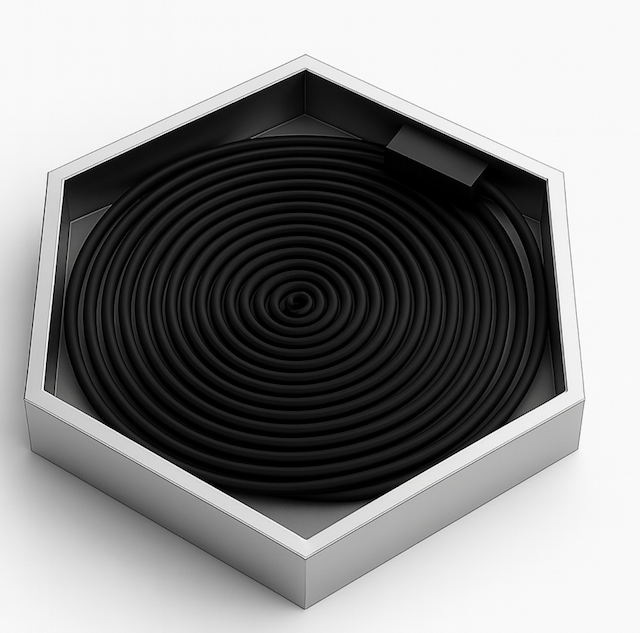

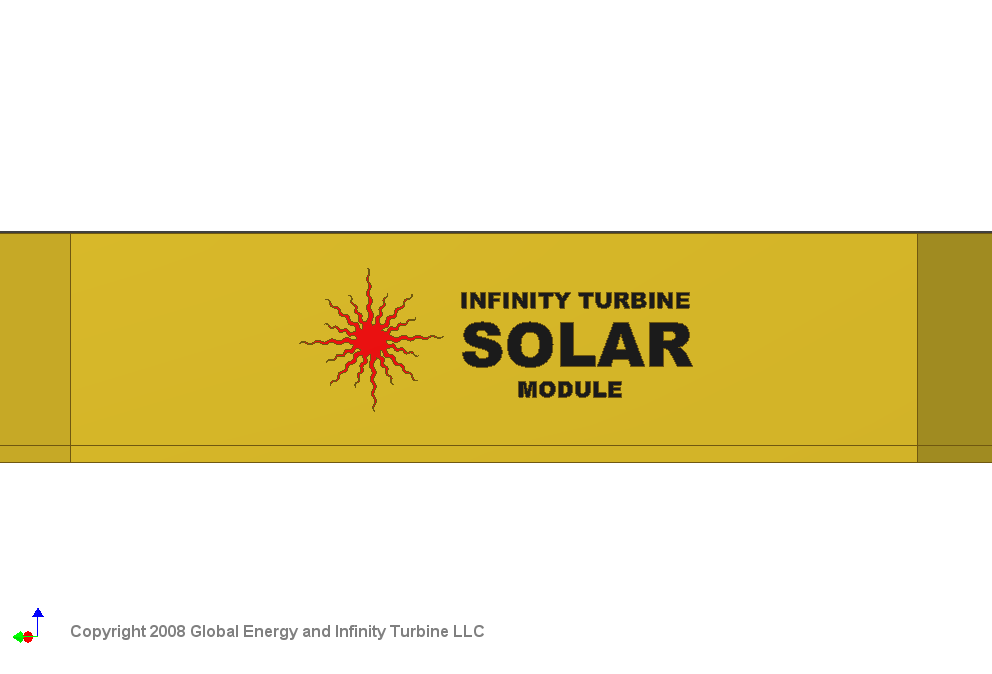

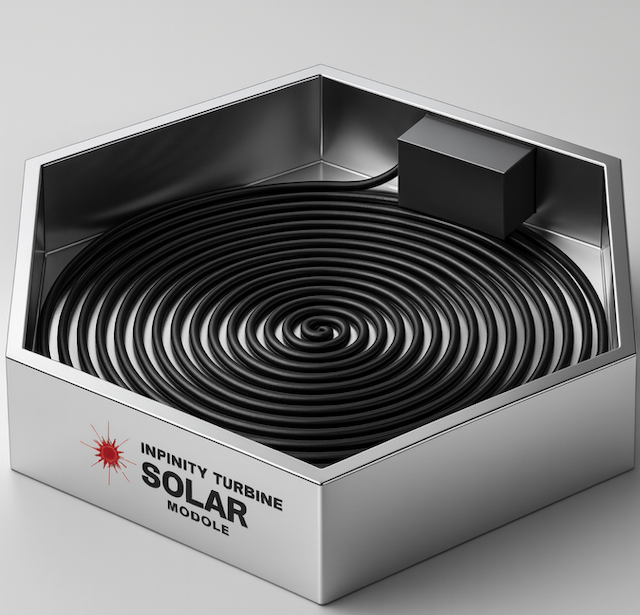

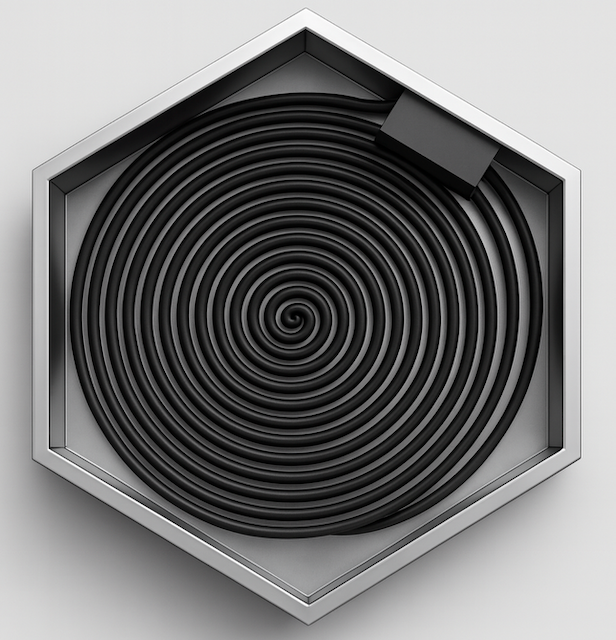

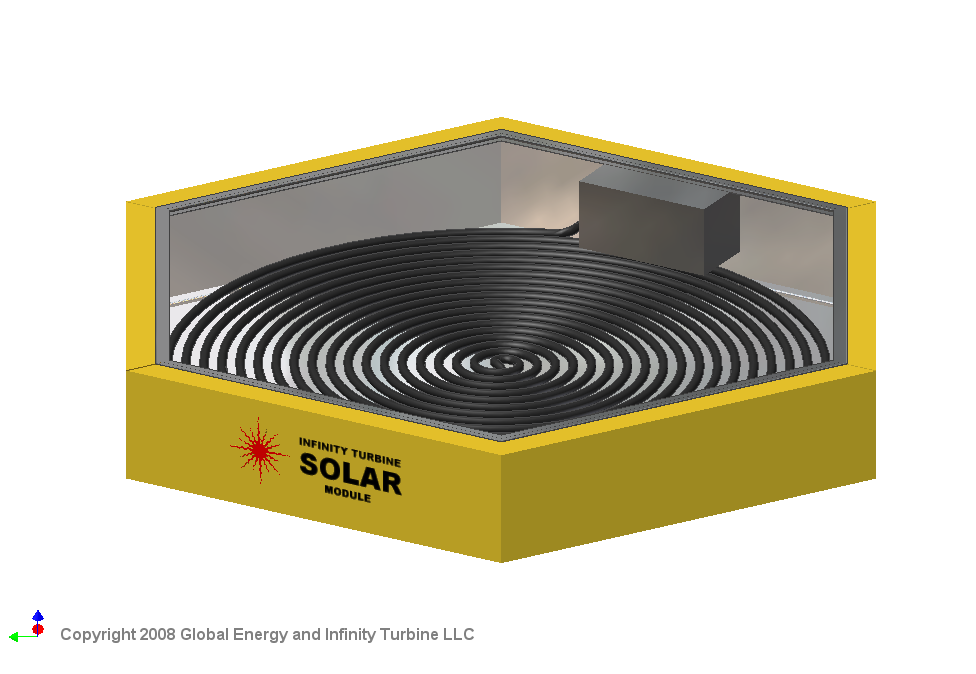

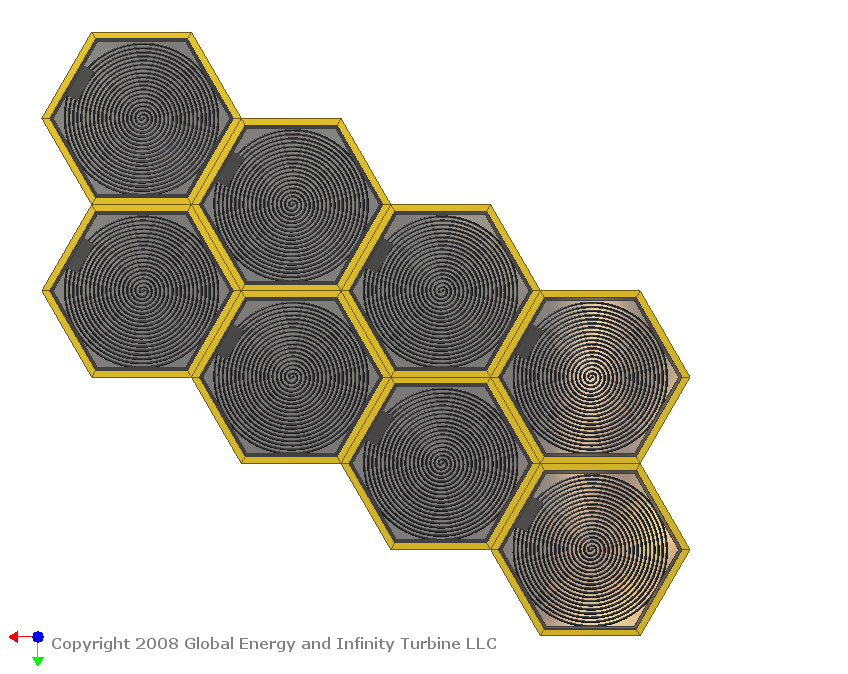

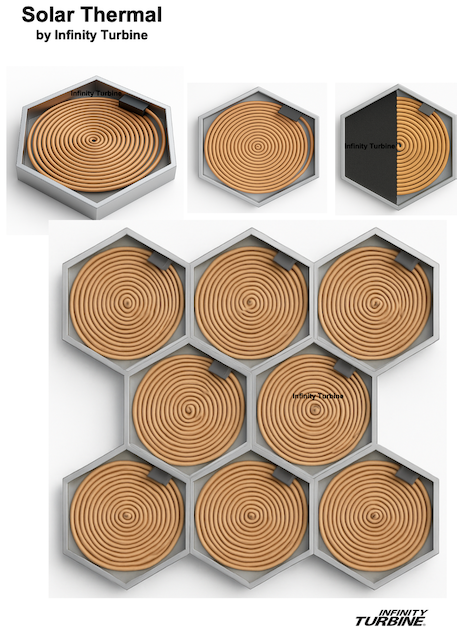

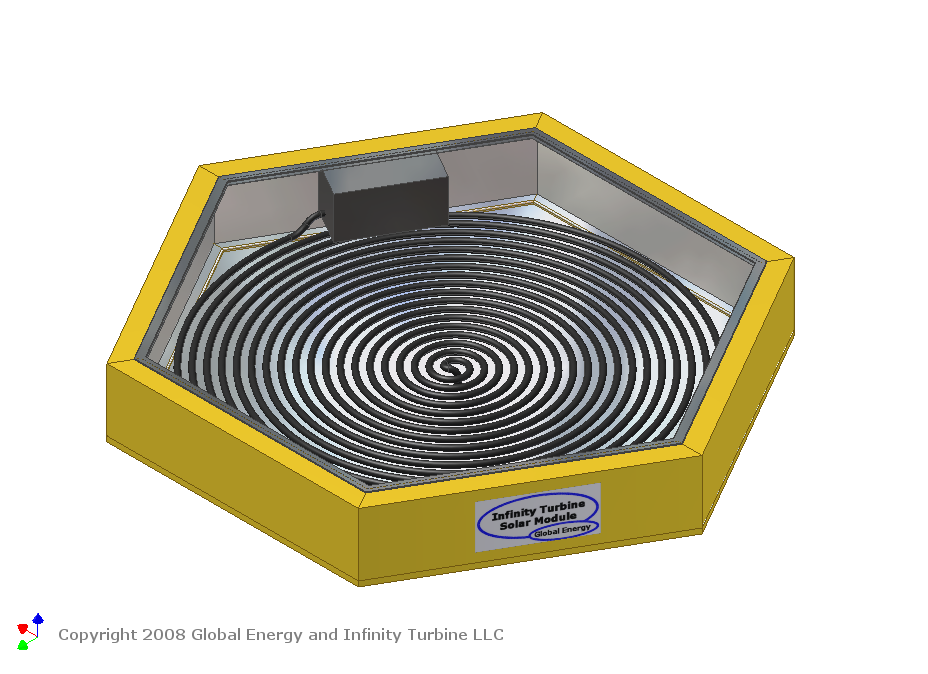

Infinity Turbine Launches 2025 Helical Solar Collector with Supercritical CO₂ and Graphene Thermal Storage Options In 2008, Infinity Turbine pioneered the concept of helical solar collectors—innovative solar concentrators that used geometric efficiency to capture and distribute thermal energy. Now, in 2025, Infinity has reintroduced and significantly upgraded this design with cutting-edge technologies that redefine performance, modularity, and integration with renewable power systems. Key Innovations in the 2025 Collector • Supercritical CO₂ Working Fluid By using supercritical carbon dioxide as the heat transfer medium, the new collectors achieve higher thermal efficiency and compactness compared to traditional water or oil-based systems. Supercritical CO₂ allows operation at elevated pressures and temperatures, enhancing overall power conversion potential for integration with Infinity’s ORC and sCO₂ turbine systems. • Laser-Etched Fresnel Lens Option The collector can be equipped with precision laser-etched Fresnel lenses, focusing sunlight with exceptional accuracy. This enhancement raises the achievable temperature range, making the system suitable for high-efficiency thermal-to-electric conversion or industrial process heat. • Vacuum-Sealed Collector Option A vacuum-sealed envelope dramatically reduces convective heat loss, ensuring maximum heat retention. This option is ideal for installations in colder or high-wind environments where maintaining peak thermal efficiency is critical. • Graphene-Coated Sand Heat Absorber Infinity introduces graphene-coated sand as a revolutionary absorber medium. Graphene’s exceptional thermal conductivity enables rapid heat transfer and retention, while sand provides a cost-effective, abundant, and stable storage matrix. • Sand-Salt Thermal Storage Integration The collector can be configured to store heat directly within a sand-salt mixture, enabling seamless day-to-night operation and pairing with Infinity’s Cluster Mesh Power Generation or Salgenx Saltwater Battery systems for 24-hour renewable energy capability. Modular, Scalable Design The collectors are available in hexagonal or rectangular formats, allowing efficient modular manufacturing, easy shipping, and scalable field deployment. Their tessellated design supports beehive-style clustering for industrial-scale thermal fields or distributed microgrid integration. A New Era of Solar Thermal Innovation The 2025 Infinity Turbine Helical Solar Collector represents a convergence of advanced materials science, supercritical thermodynamics, and modular engineering. It not only captures solar energy but also stores and distributes it with unprecedented efficiency—marking a new chapter in solar thermal technology.
